主要特点及性能
ain Features & Performance

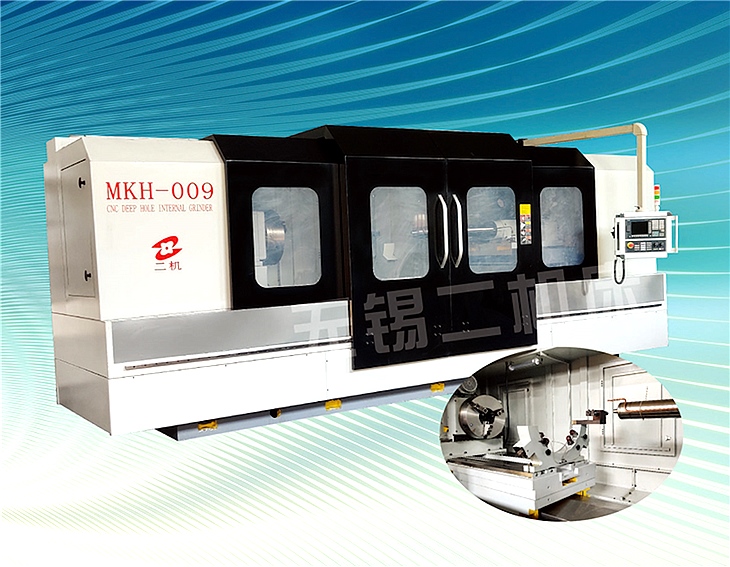

1.MH009/MKH009型内圆磨床主要用于磨削深孔。
2.磨孔直径50~400mm. 最大磨削深度1200mm。
（经特殊订货磨孔直径可增大至500mm。最大磨削深度可至1200mm)
3.床头箱回转角度士10°（可磨削锥孔）。
4.工作台行程买用液压无级调速，独立控制电箱，PLC系统控制自动进给。（可按用户要求配数控系统）
5.特殊订货，可满足主轴锥孔的磨削。
MHOO9/MKHO09 type intemal grinder mainly applies to deep hole grinding.
Grinding diameter of 80-400mm, max. grinding depth of 1200mm.
(via special order, the grinding diameter can be enlarged to 500mm, maximum depth of grinding up to 1200mm)
Revolution angle of the spindle head is +10° (can grind taper hole).
The work bench is hydraulic stepless speed regulation, independent control electronics, PLC system control
automatic feeding.
Via special order, can grinding spindle cone holes.
